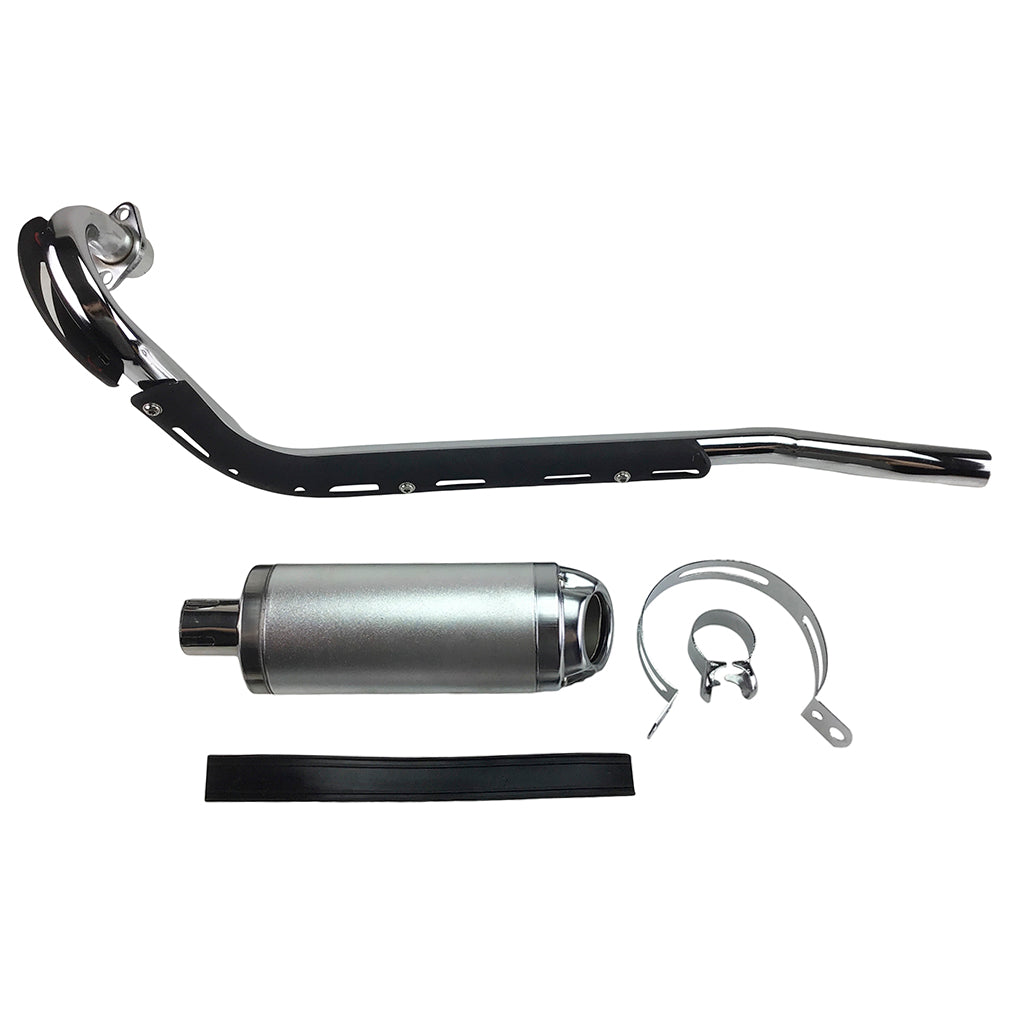

Exhaust System / Muffler for Tao Tao DB17 Dirt Bike – Version 189

Description

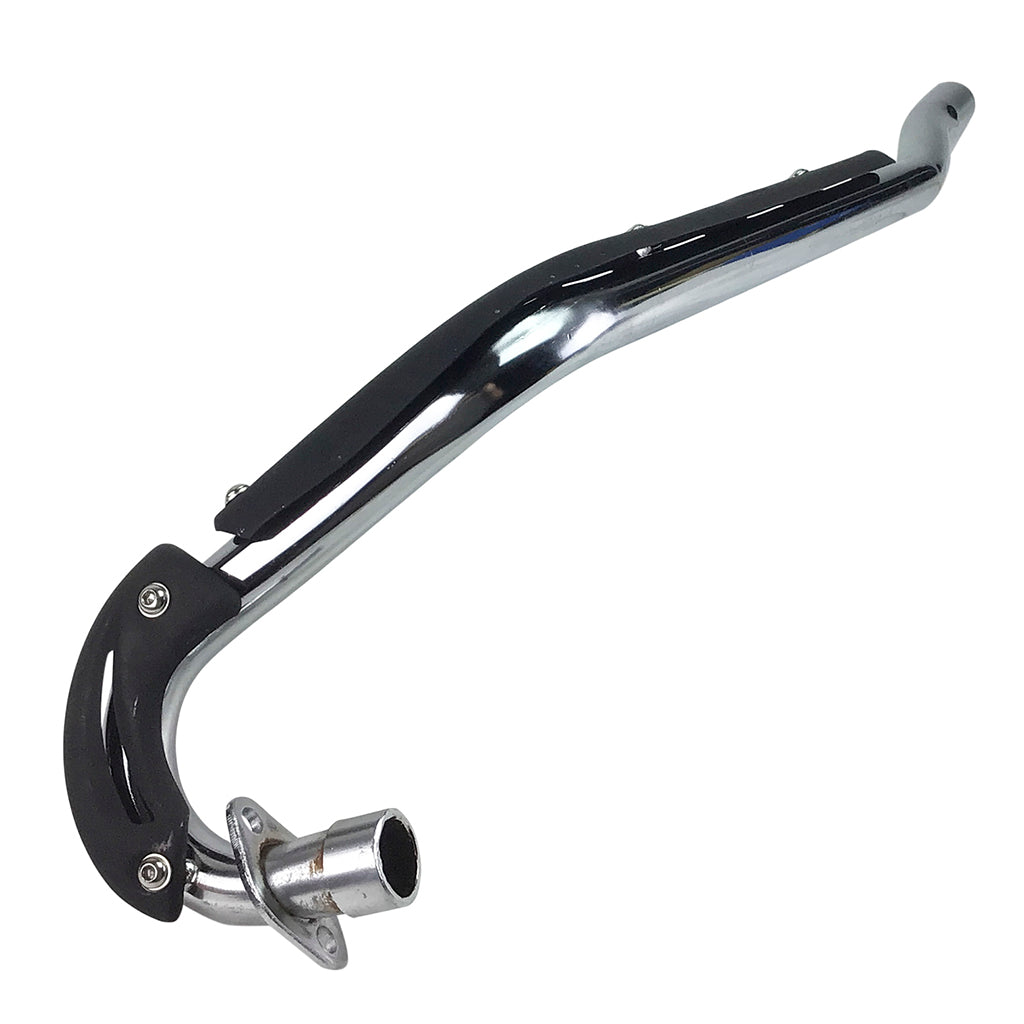

Tao Tao DB17 Dirt Bike Exhaust System Version 189 This exhaust is known to fit the Tao Tao DB17 dirt bike / motorcycle. Please verify the measurements before purchasing this exhaust. May fit other makes and models. Exhaust details: Muffler length: 281mm (11.0 in) Muffler diameter: 86mm (3.4 in) Muffler has a screen spark arrestor ID of muffler where pipe attaches: 28mm (1.1 in) Pipe is approximately 25 inches long the way the crow flies Pipe flange bolt holes are 46mm (1.8 in) center-to-center apart Pipe OD at flange end: 32mm (1.27 in) Pipe ID at flange end: 25mm (1.0 in) Pipe OD at muffler e
